1.0 electricity fee no wiring required work continuously for 3-7 rainy and cloudy days

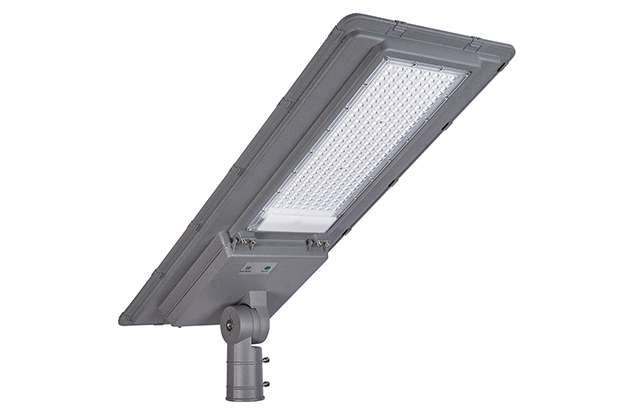

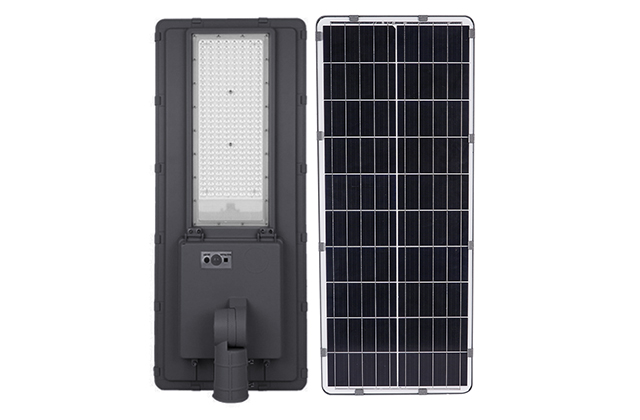

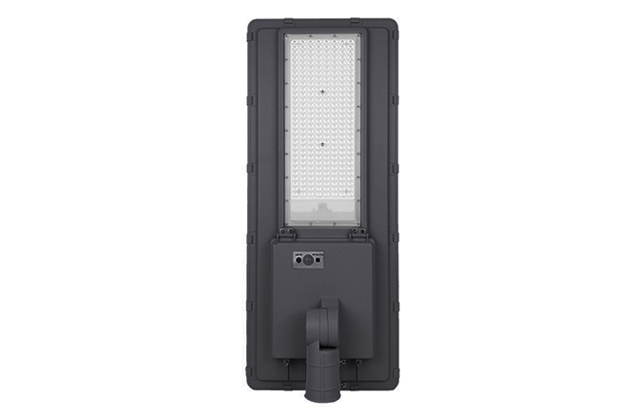

2.GH-LKD series is All in One solar lighting system designed for cost-effective lighting for small to medium spaces. Reliability and easy installation, All key components are integrated within the solar panel and light head.
3.The design of the detachable battery compartment reduces maintenance difficulty and cost, which is conducive to the sustainable use of the product.

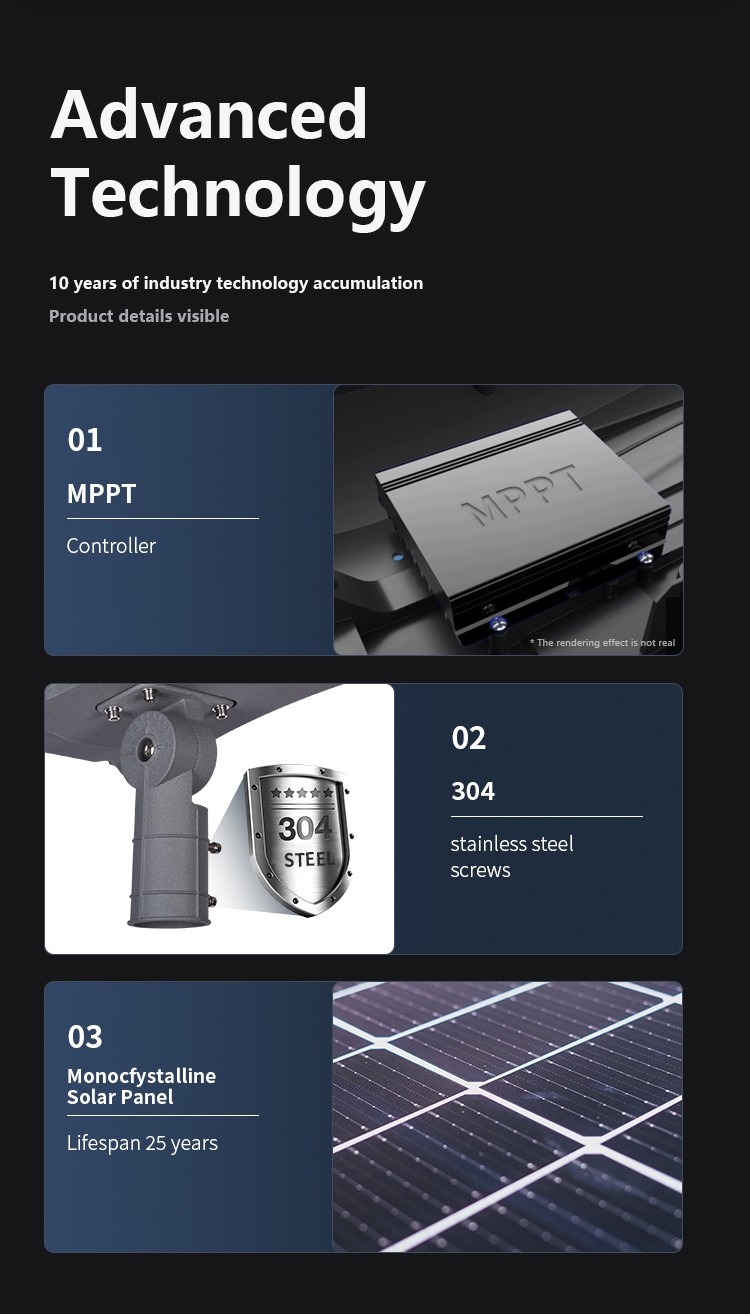

4.It uses an intelligent MPPT controller to maximize solar power capture through a powerful and compact Lithium-Ion battery system, and a motion sensor to adjust light brightness and preserve battery power.

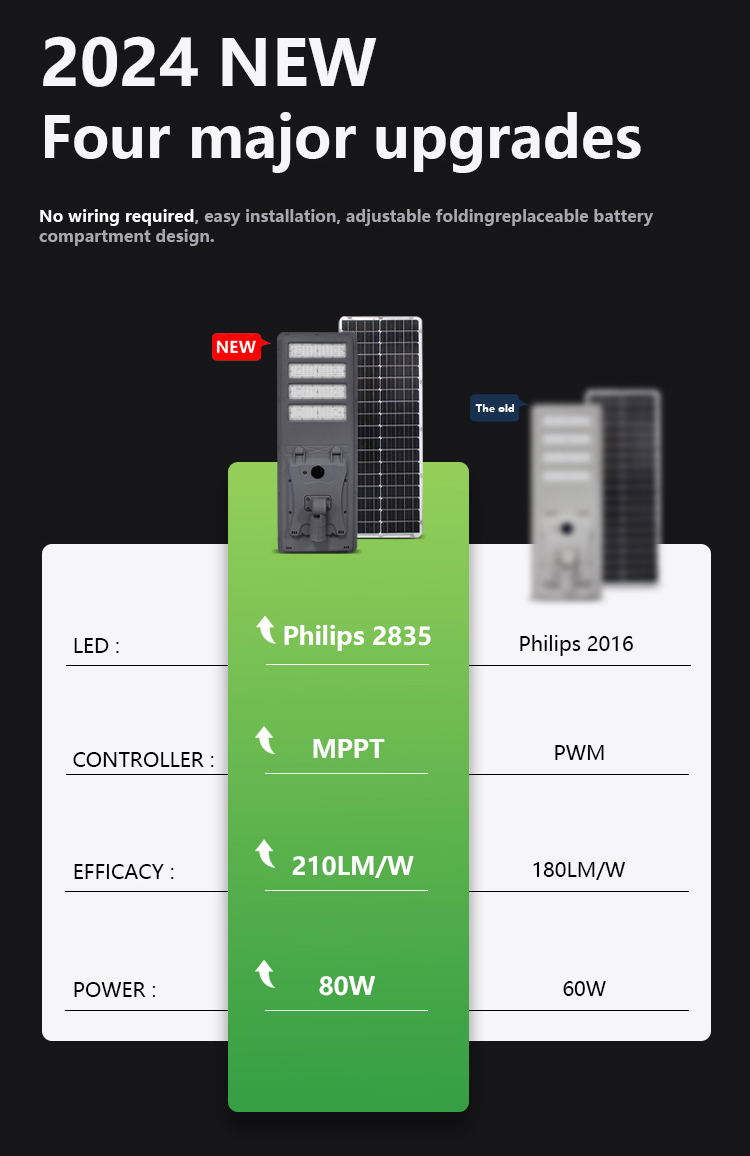

5.Removable battery compartment for easy battery relacement, reducing maintenance time and maintenance costs.
6.High brightness Lumileds SMD 2835 LED chips up to 200lm/w ,super brightness ,reduce light decay.
Data sheet

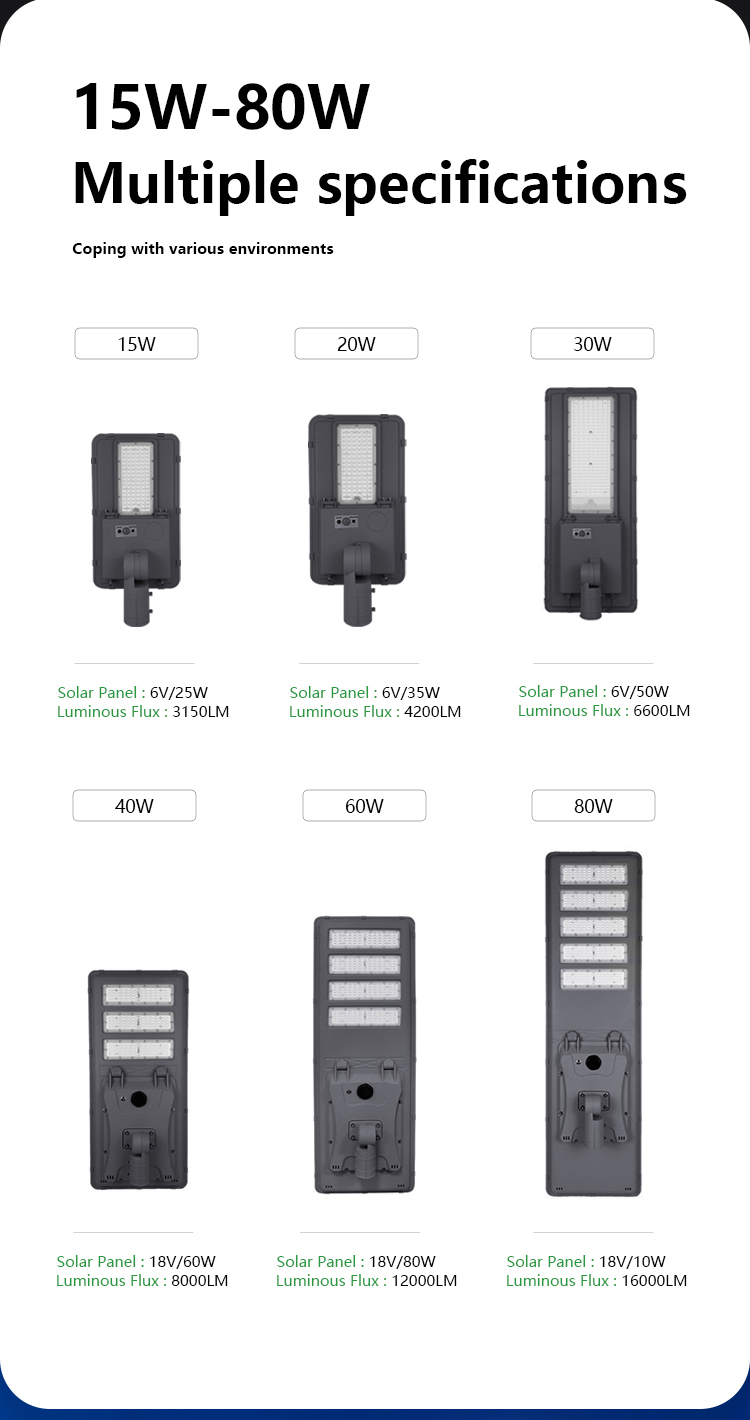

| Model No | GH-LKD-15W | GH-LKD-20W | GH-LKD-30W |

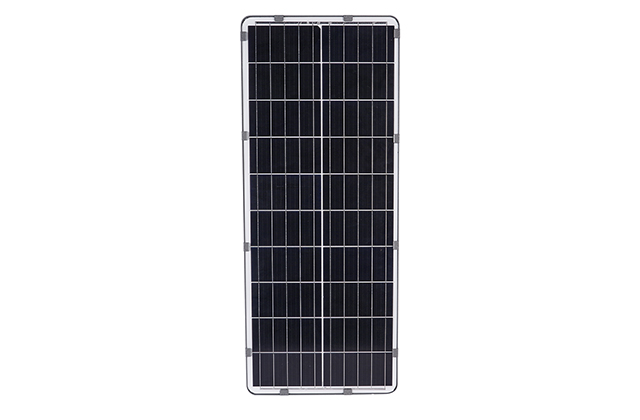

| Solar Panel Mono. | 6V/25W | 6V/35W | 6V/50W |
| Solar panel lifespan | 25 years |
| Solar panel Size | 500*279mm | 605*323mm | 842*341mm |
| Battery | LiFePO4 Lithium 3.2V 24AH | LiFePO4 Lithium 3.2V 32AH | LiFePO4 Lithium 3.2V 72AH |
| Battery lifespan | >2000 times cycle charging |
| LEDs Chips | Lumileds SMD 2835/3030 |
| Beam Angle | TYPE II, TYPE III, TYPE IV, TYPE V |
| Light Efficiency | 200lm/w
|
| Lumen | | | |
| Charge time | 4-6 hours |
| Working Temp | -30℃-+55℃ |
| Controller | PWM & MPPT |
| Warranty | 3 Years |
| Light Method | Microwave induction + time control + intelligent control        |
