20W 30W 40W High Efficiency LED Solar Street Lights with HD Camera

44 Views

China solar street light manufacturer with 15 years experiences, support OEM and ODM, high quality, factory direct price; Rich experiences in road/government solar street light projects.

20W/ 30W/ 40W
Made of 6063 aluminum
Monocrystalline solar panel
Auto On/Off + Microwave induction + time control + intelligent control
LiFePO4 Lithium Battery
Charge Time: 4-6 hours
Discharge Time: supporting 3-7 rainy days

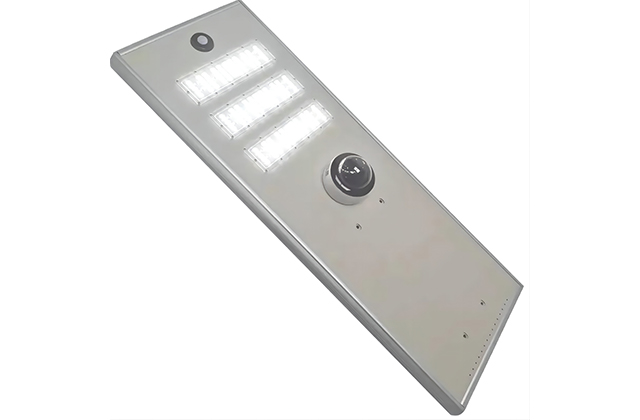

HD Camera for option
IP65 waterproof
3 Years warranty.

Get a Quote

Category :

Solar Street lights

Description

1.The radiator is made of 6063 aluminum, which is treated with thickened anti-corrosion paint.

2.No additional wiring is required, saving expenses; multiple mounting brackets can be installed in tubes, arms, etc.

3.Direct lighting design, high light transmittance PC protective cover, light transmittance over 90%, high Light effect.

4.Genuine imported chip lamp beads, high Light effect, low light decay, high energy saving efficiency.

5.High thermal conductivity aluminum substrate and radiator, low temperature rise, good heat dissipation of the whole lamp, and more guaranteed life.

6.3-year warranty commitment, lifetime cost price maintenance.

7.Assembly line operation, large-scale production, stable product performance and more guaranteed quality.

Data sheet

Product Number	GH-LK-20W	GH-LK-30W	GH-LK-40W
Solar Panel	Monocrystalline 18V/35W	Monocrystalline 18V/50W	Monocrystalline 18V/60W
Panel Size	630*331 mm	830*340 mm	988*340 mm
LEDs Brand	Lumileds SMD 2835/3030
Light Efficiency	180lm/w
Lumen	3600lm	5400lm	7200lm
Controller	PWM / MPPT
Lighting Method	Auto On/Off + Microwave Induction + Time Control + Intelligent Control
Charging Time	4-6 hours
Battery	LiFePO4 Lithium 3.2V 36AH	LiFePO4 Lithium 3.2V 76AH	LiFePO4 Lithium 3.2V 100AH
IP Grade	IP65
CCT	2700K-6500K
Beam Angle	TYPE II, TYPE III, TYPE IV, TYPE V
Material	6063 Aluminum+ PMMA Lens
Lifetime	50,000 Hours
Working Temp	-30℃~+55℃
Warranty	3 Years
Certifications	CE RoHs LM80 IP65
Package	Support customized company logo and package, OEM & ODM are available
Packing Size	857395120mm	900400135mm	1060400135mm
Gross Weight	9.6KG	10.5KG	12.5KG
