1.The radiator is made of 6063 aluminum, which is treated with thickened anti-corrosion paint.

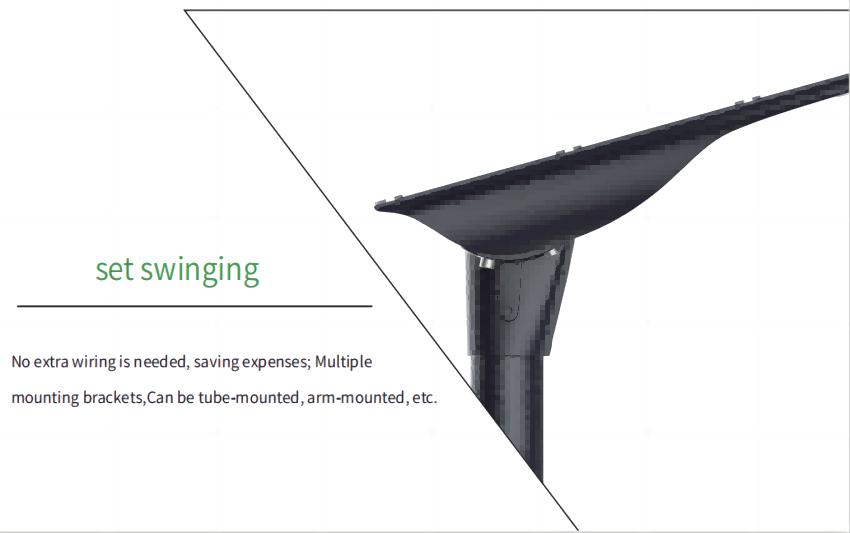

2.No additional wiring is required, saving expenses; multiple mounting brackets can be installed in tubes, arms, etc.
3.Direct lighting design, high light transmittance PC protective cover, light transmittance over 90%, high Light effect.
4.Genuine imported chip lamp beads, high Light effect, low light decay, high energy saving efficiency.

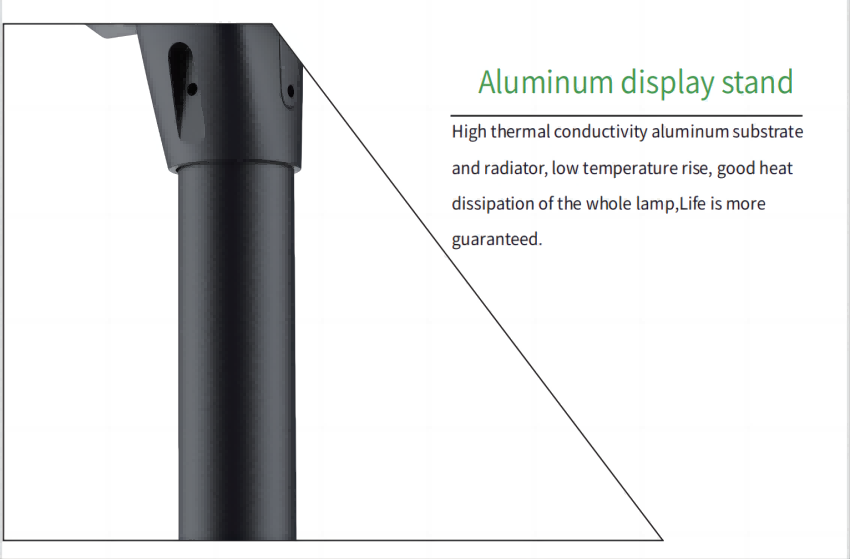

5.High thermal conductivity aluminum substrate and radiator, low temperature rise, good heat dissipation of the whole lamp, and more guaranteed life.
6.3-year warranty commitment, lifetime cost price maintenance.
7.Assembly line operation, large-scale production, stable product performance and more guaranteed quality.
Data sheet
| Product Model | GH-LKF-20W | GH-LKF-30W | GH-LKF-40W |

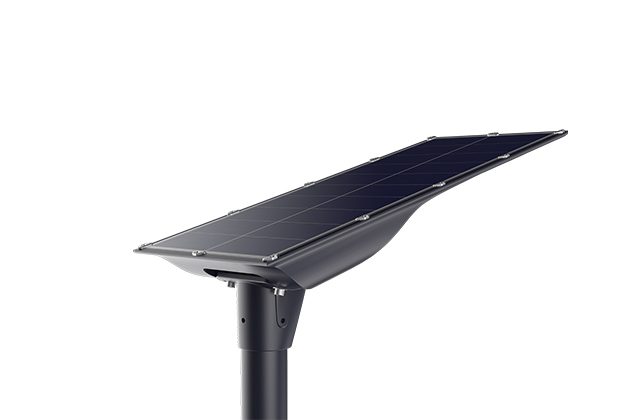

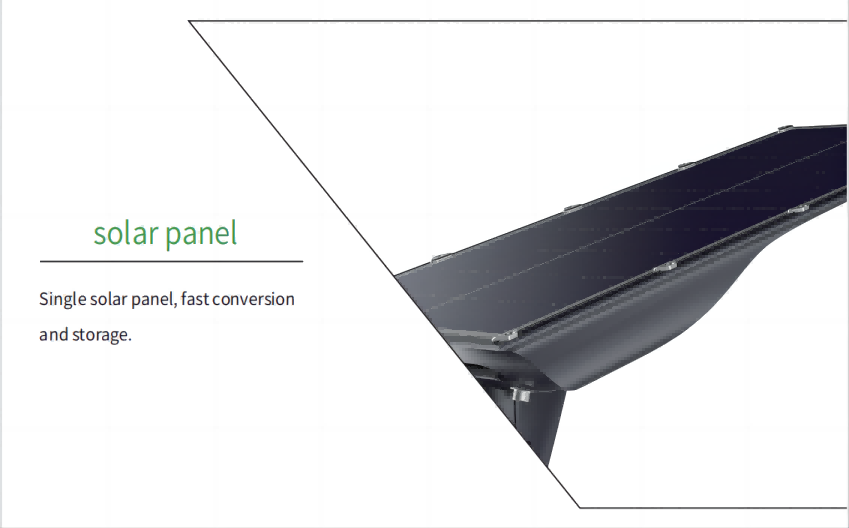

| Monocrystalline solar panel | 18V/40W | 18V/50W | 18V/65W |

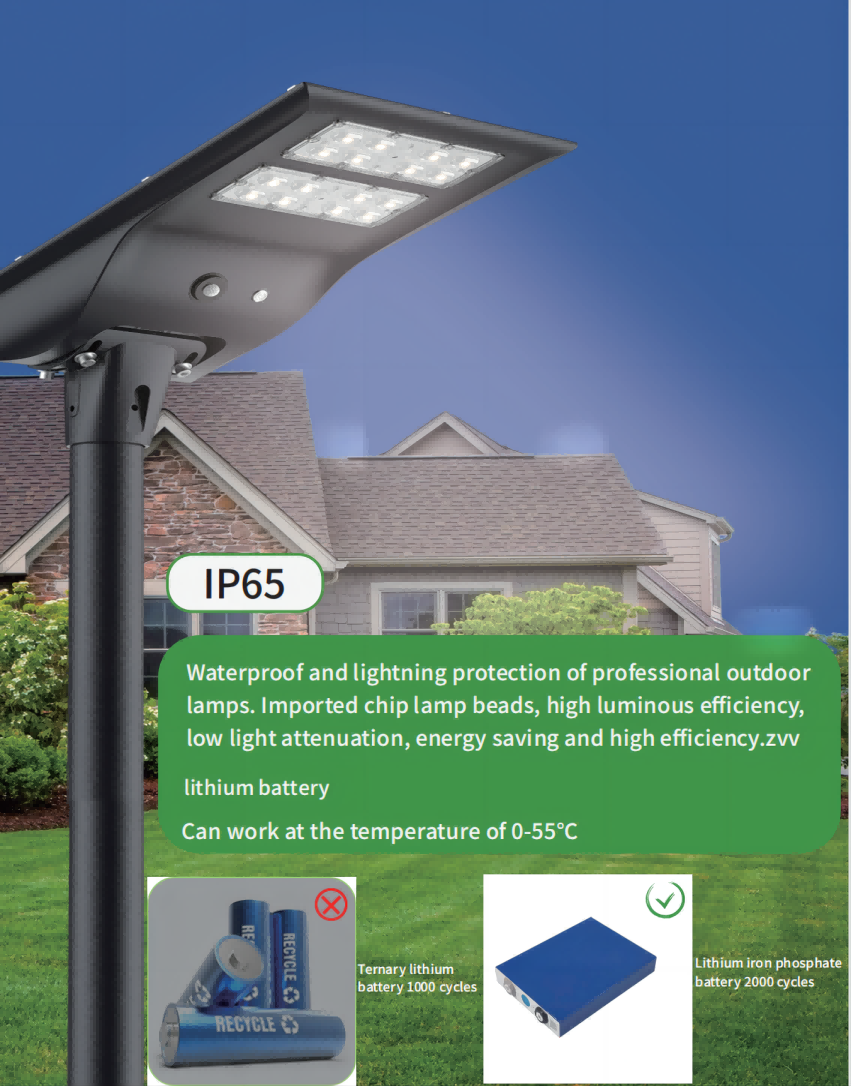

| Battery | Lithium LifePO4 3.2V 36AH | Lithium LifePO4 3.2V 76AH | Lithium LifePO4 3.2V 100AH |

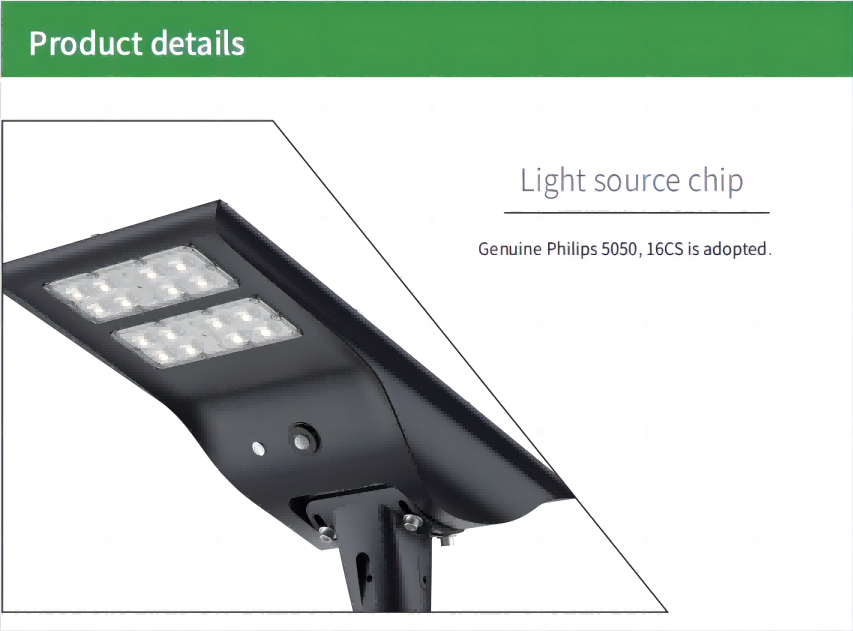

| LEDs Chips | Philips 5050 |
| Material | Die-casting aluminum |
| Luminous Efficiency | 200lm/w |
| Controller | MPPT boost constant current integrated control |
| Lighting Mode | Microwave induction+segmented time control+intelligent control |
| Charge Time | Supporting 5-7 rainy days |
| Discharge Time | Sunshine lasts for 6 hours |
| Working Hours | >50,000 hours |

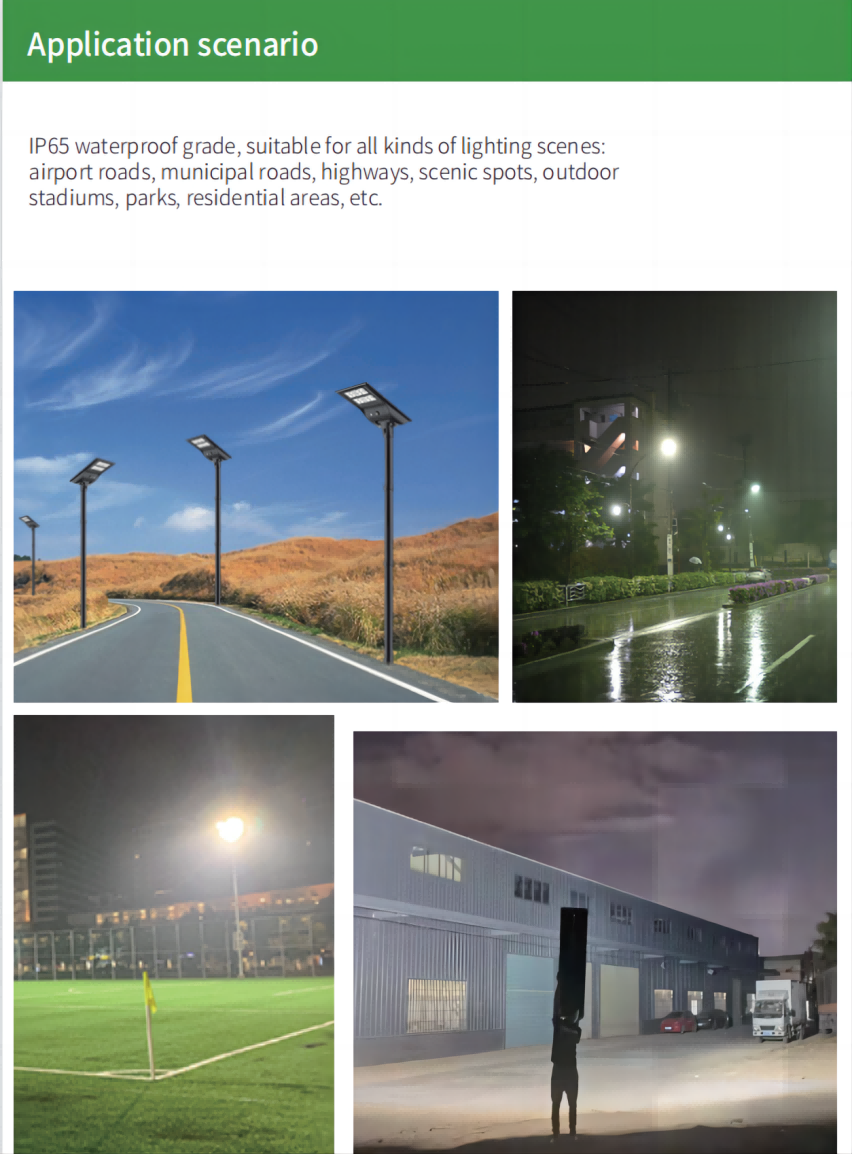

| IP Grade | IP65 |
| Warranty | 3 years |
| Product Size | 760*430*150mm | 910*430*150mm | 1160*430*150mm |
