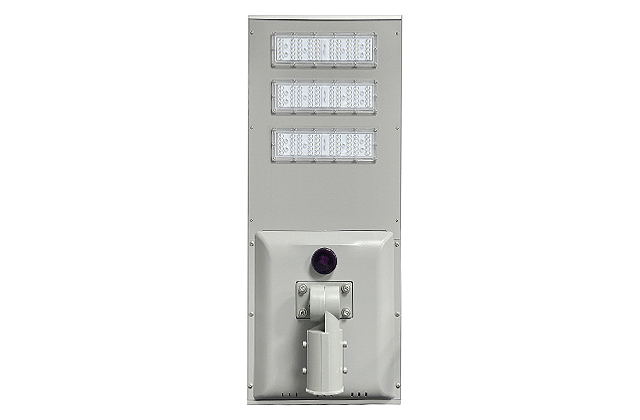

High Lumens 200LM/W 20W 30W 40W 60W 80W All in One Solar induction Street Lamp Outdoor Waterproof IP65 With Remote Control

51 Views

China solar street light manufacturer with 15 years experiences, support OEM and ODM, high quality, factory direct price; Rich experiences in road/government solar street light projects.

Power(W):20W~80W
LED Chip: Philips
Light Effciency:200 lm/w
CCT:2700k ~ 6500K
Ra(CRI):80
Protection:IP65
Control method:Human body induction + light control
Lifespan(hour):50000
Certificate:CE, RoHS
Warranty: 5 Years

Get a Quote

Category :

Solar Street lights

Description

1.0 electricity fee no wiring required work continuously for 3-7 rainy and cloudy days

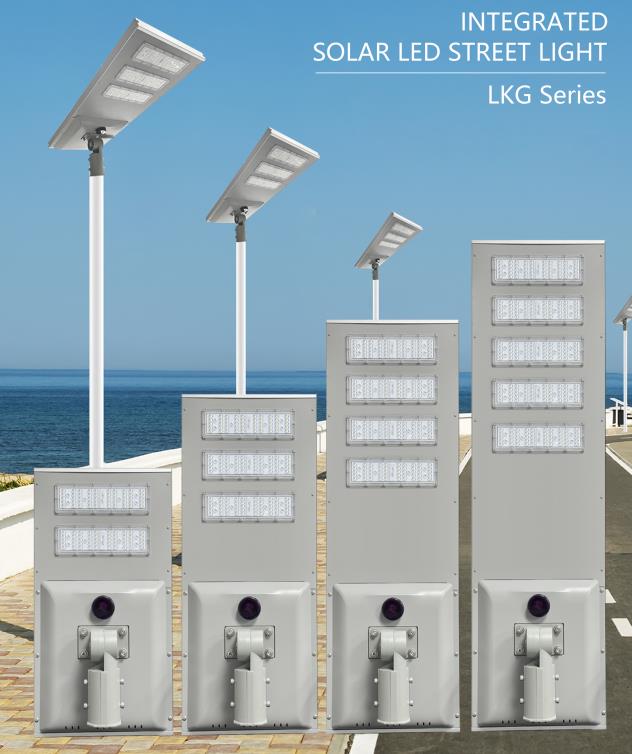

2.GH-LKG series is All in One solar lighting system designed for cost-effective lighting for small to medium spaces. Reliability and easy installation, All key components are integrated within the solar panel and light head.

3.The design of the detachable battery compartment reduces maintenance difficulty and cost, which is conducive to the sustainable use of the product.

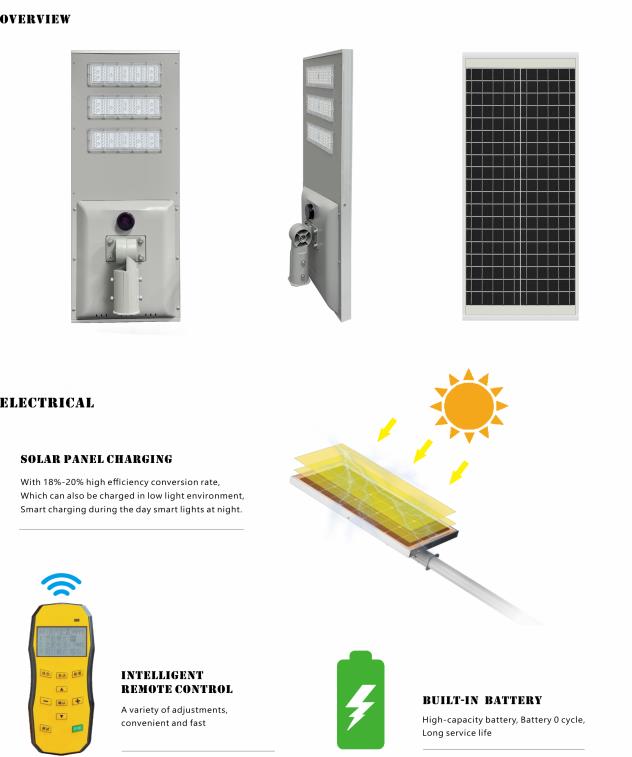

4.It uses an intelligent MPPT controller to maximize solar power capture through a powerful and compact Lithium-Ion battery system, and a motion sensor to adjust light brightness and preserve battery power.

5.Removable battery compartment for easy battery relacement, reducing maintenance time and maintenance costs.

6.High brightness Lumileds SMD 3030 LED chips up to 200lm/w ,super brightness ,reduce light decay.

Data sheet

Model number	LKG-20W	LKG-30W	LKG-40W	LKG-60W	LKG-80W
Single cystal solar panel	18V/35W	18V/50W	18V/60W	18V/80W	18V/100W
Solar panel size	630*334mm	830*340mm	988*340mm	1310*340mm	1650*340mm
Battery	Lithium ion 3.2v 36ah	Lithium ion 3.2v 76ah	Lithium ion 3.2v 100ah	Lithium ion 12.8v 37ah	Lithium ion 12.8v 45ah
LED	SMD 3030, 100PCS	SMD 3030, 150PCS	SMD 3030, 200PCS	SMD 3030, 250PCS	SMD 3030, 250PCS
Product size	638345135mm	838345135mm	996345135mm	1318345135mm	1655345160mm
Light efficiency	200LM/W
Controller	MPPT、PWM Selectable
Lighting mode	infrared sensing+segmented time control+intelligent control
Recommended installation height	4~5 meter	5~6 meter	6~8 meter	8~10 meter	10~12 meter
